Wall Hung WC Frame with Concealed Cistern

A wall hung WC frame with concealed cistern is a modern and space-saving solution, designed to support wall-mounted toilets while keeping all pipework and the cistern hidden within the wall. This creates a clean, minimalist bathroom aesthetic while improving hygiene and ease of cleaning.

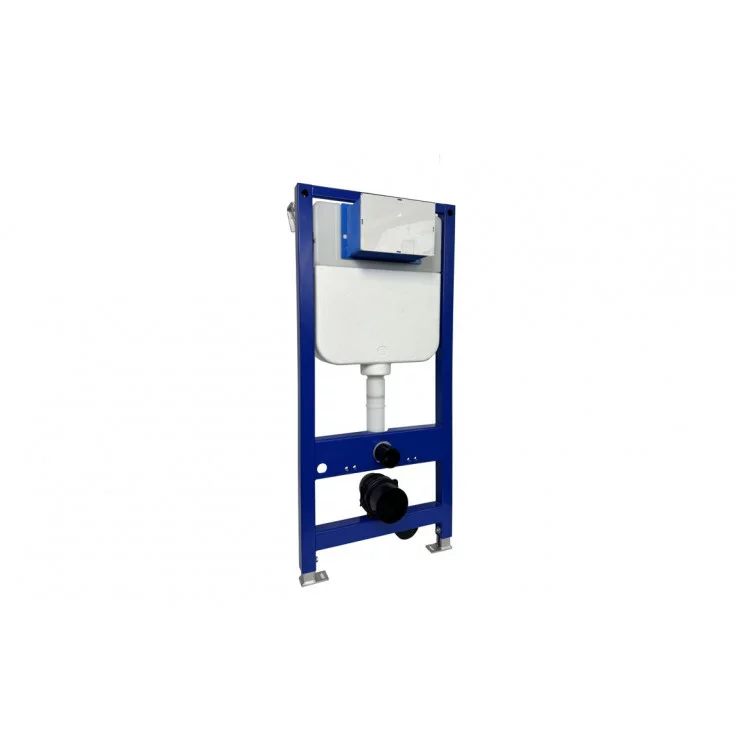

The robust steel frame is engineered to securely support a wall-hung WC pan, while the integrated concealed cistern delivers efficient and reliable flushing performance. These systems are ideal for contemporary bathrooms, offering both functional benefits and a sleek, uncluttered finish.

Key Features

• Designed for wall-hung WC installation
• Includes integrated concealed cistern
• Dual flush system (typically 6L/4L or 6L/3L) for water efficiency
• Heavy-duty powder-coated steel frame for strength and durability
• Height adjustable frame for flexible installation
• Front or top access for easy maintenance
• Compatible with a wide range of flush plates (sold separately)
• Concealed installation for a clean, modern look

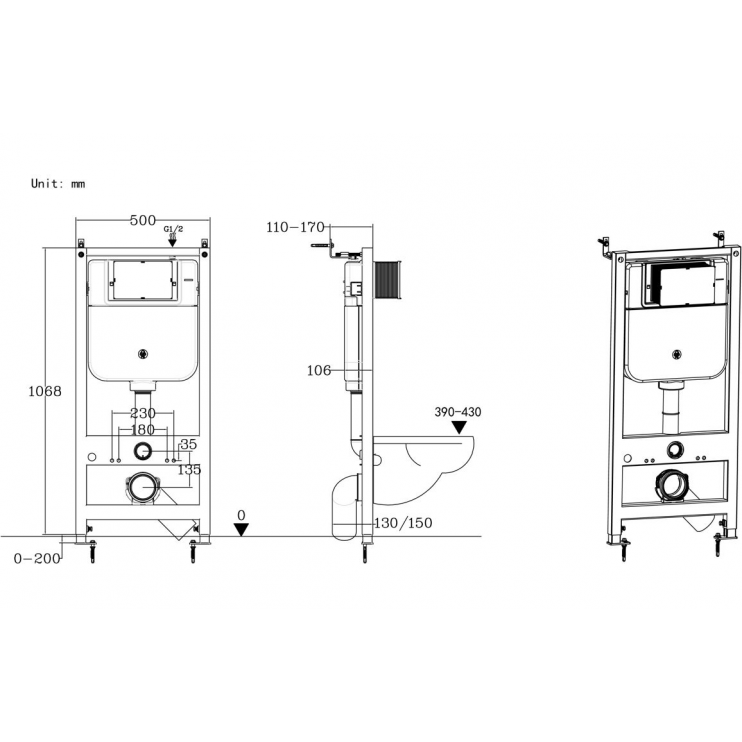

Specifications

• Height: Approx. 1080–1380mm (adjustable)
• Width: Approx. 400–500mm
• Depth: Approx. 110–170mm
• Flush Type: Dual Flush
• Material: Powder-Coated Steel Frame with Plastic Cistern
• Installation: In-wall / Stud Wall / Pre-wall System
• Compatibility: Wall Hung WC Pans

Additional Information

Wall hung WC frames are designed to be concealed behind a wall or within a stud partition, providing a floating toilet appearance that enhances the sense of space. The integrated cistern typically features dual flush technology, commonly pre-set to 6/4 litres, helping to reduce water usage without compromising performance. :contentReference[oaicite:1]{index=1}

Most frames offer adjustable height (often between 1080mm and 1380mm) and front access panels for straightforward maintenance, making them suitable for a wide range of bathroom layouts. :contentReference[oaicite:2]{index=2}

Ideal for modern bathroom design, these systems maximise floor space, simplify cleaning, and deliver a streamlined, contemporary finish when paired with a compatible wall-hung WC and flush plate.
